28FH-W/28FH-W-B/28FHL-W/28FHL-W-B

28FH-W/28FH-W-B/28FHL-W/28FHL-W-B

Features:

Pleat Height:15mm/20mm/25mm/32mm/38mm/45mm

Available Color

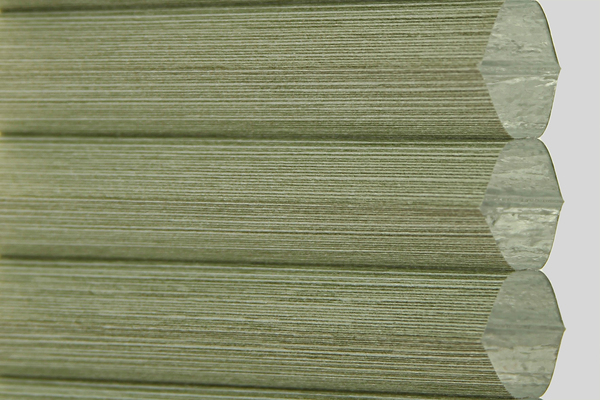

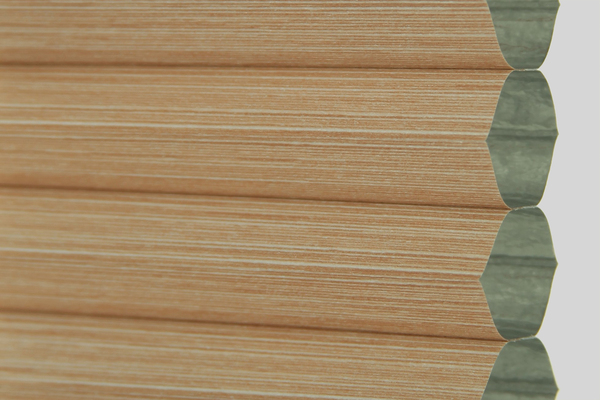

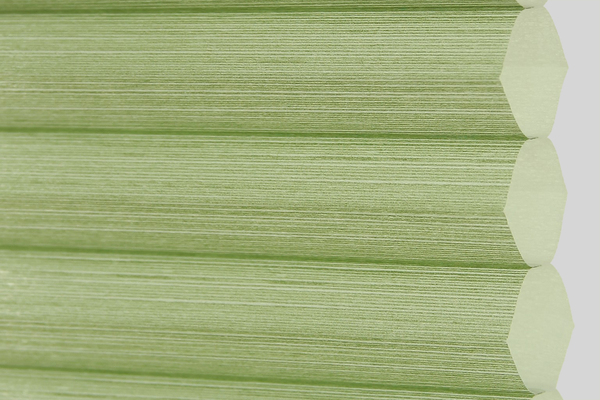

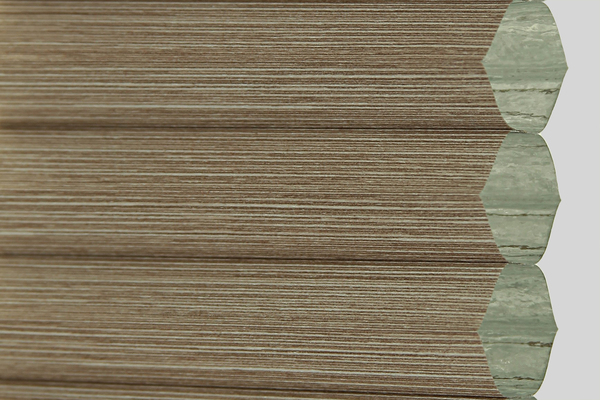

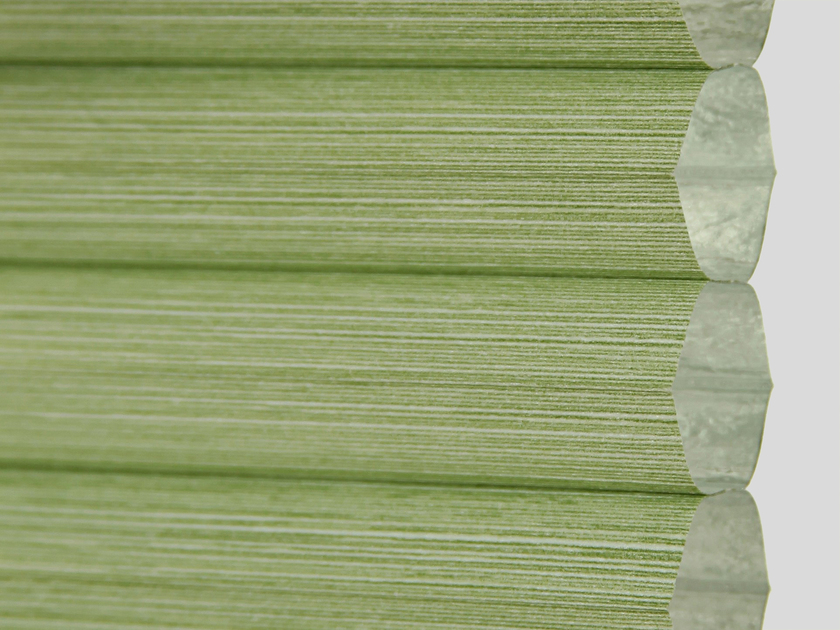

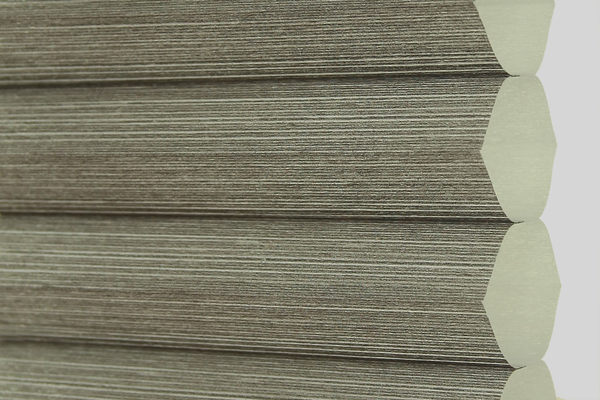

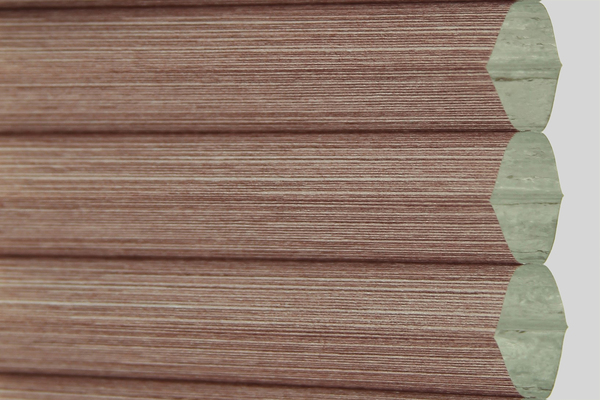

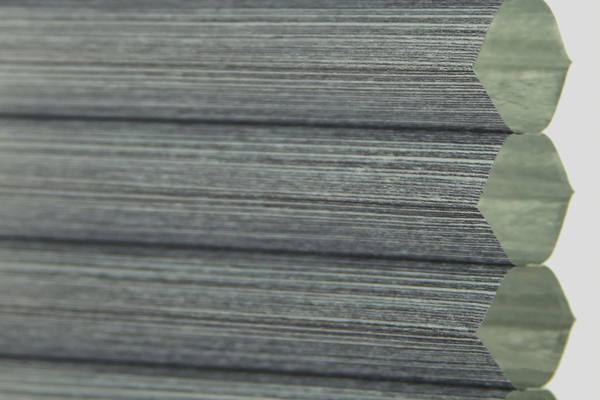

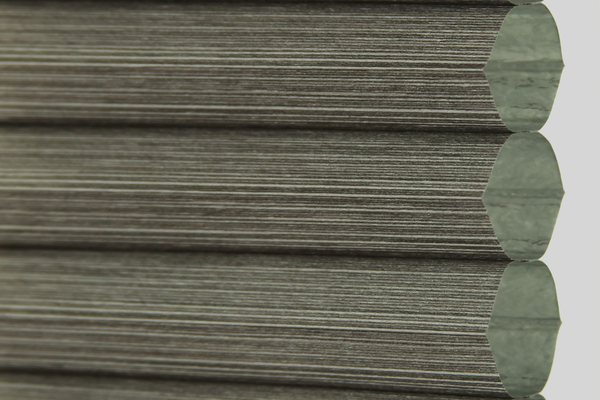

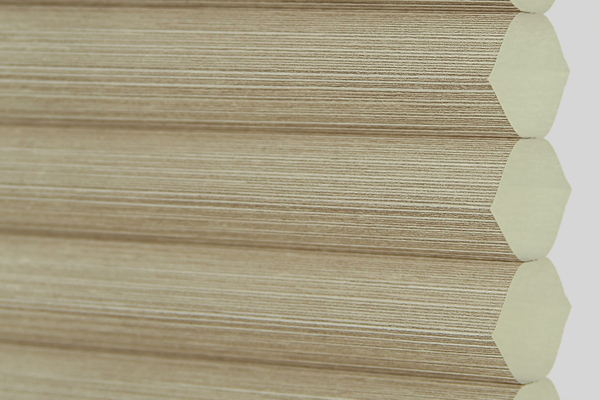

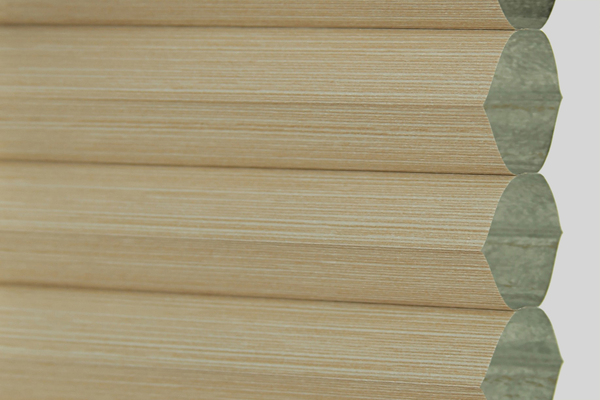

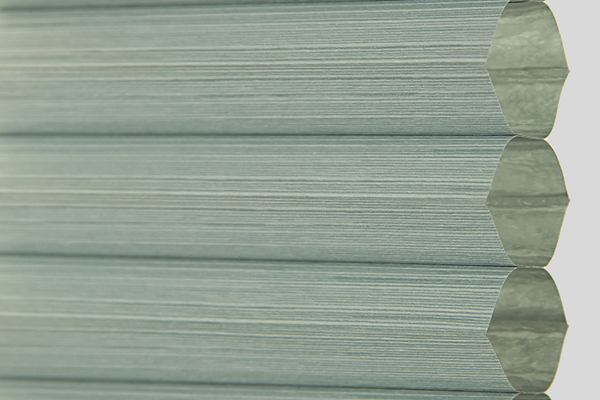

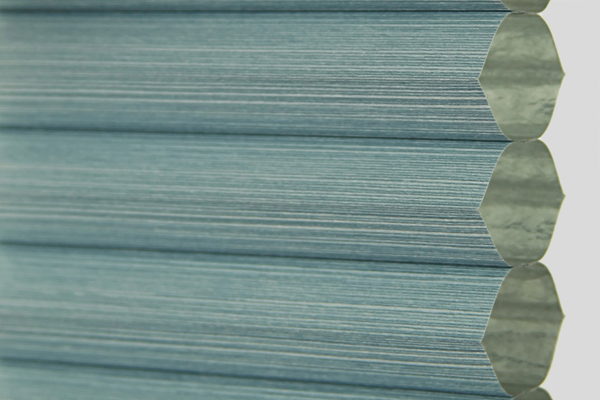

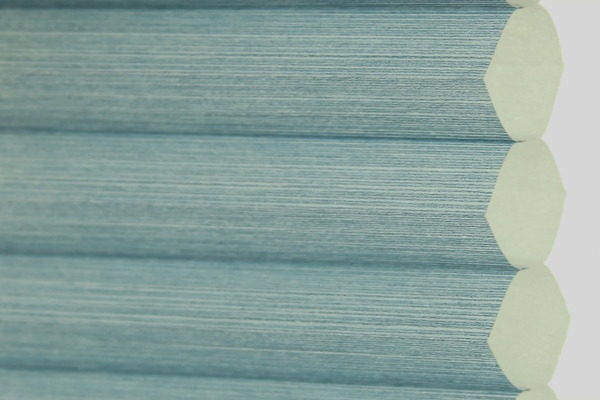

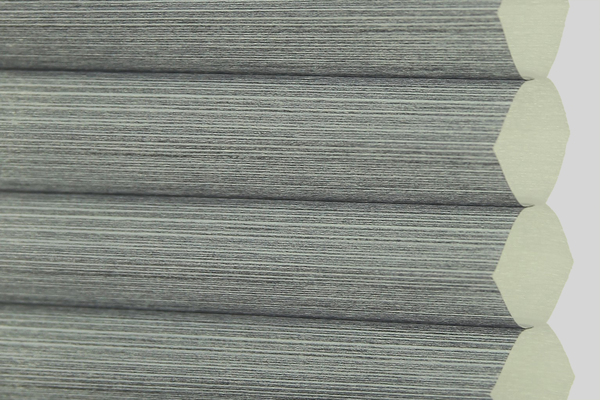

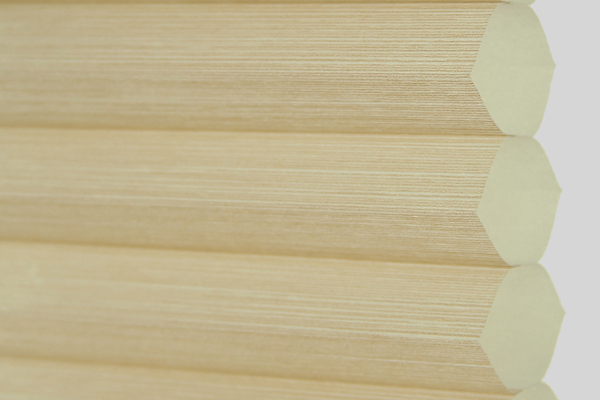

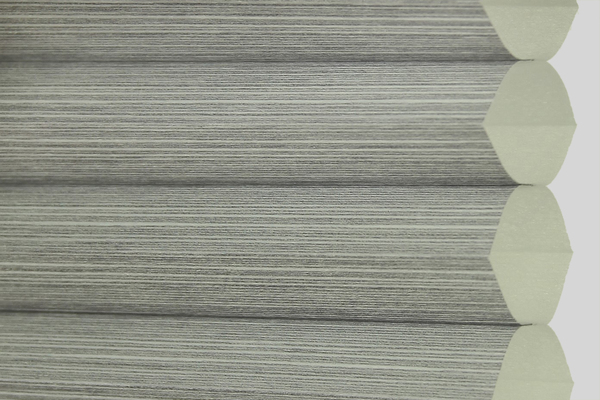

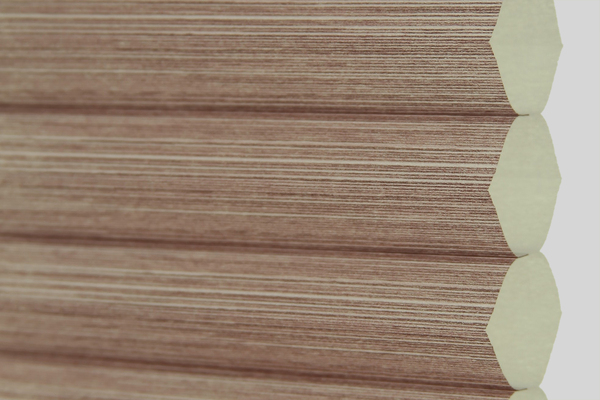

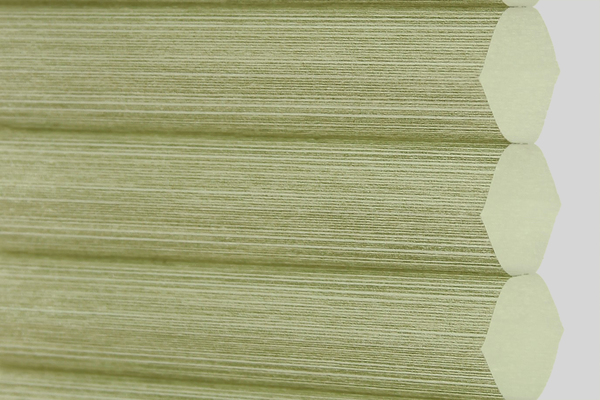

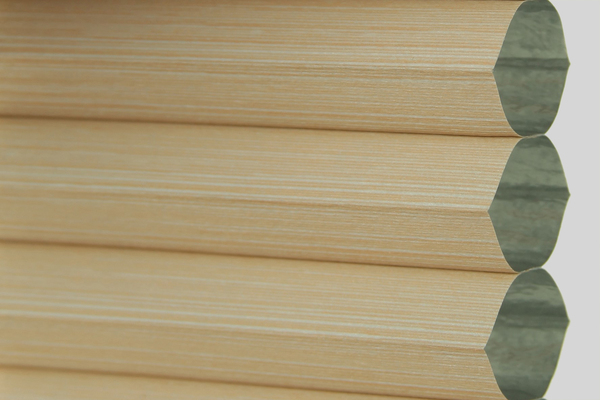

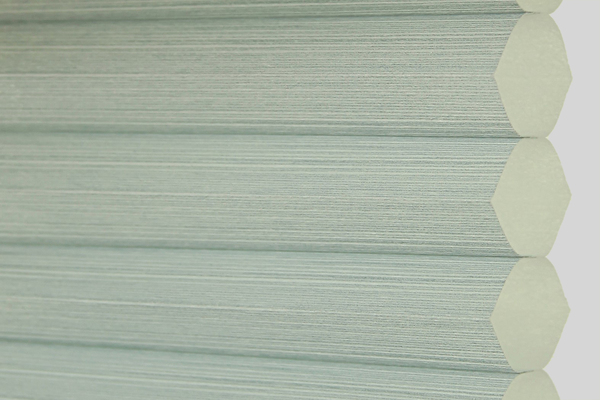

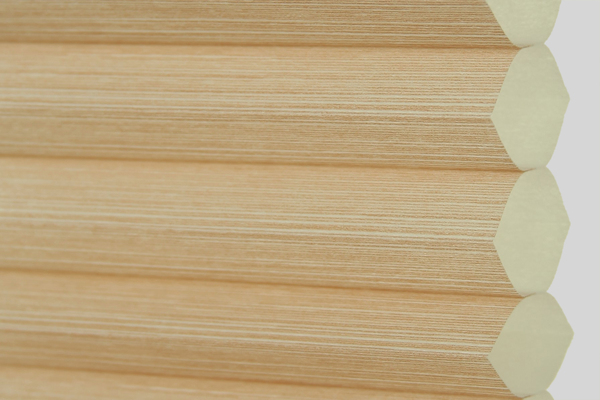

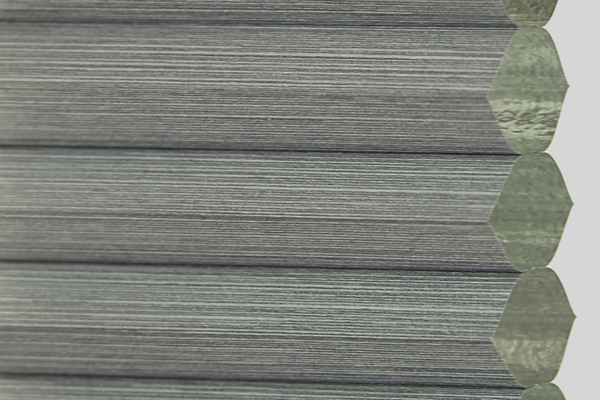

28FH-W-0201-38 28FH-W-0202-38 28FH-W-0501-38 28FH-W-0502-38 28FH-W-0503-38 28FH-W-1101-38 28FH-W-1301-38 28FH-W-1302-38 28FH-W-1601-38 28FH-W-1602-38 28FH-W-1603-38 28FH-W-1802-38 28FH-W-B-0201-38 28FH-W-B-0202-38 28FH-W-B-0501-38 28FH-W-B-0502-38 28FH-W-B-0503-38 28FH-W-B-1101-38 28FH-W-B-1301-38 28FH-W-B-1302-38 28FH-W-B-1601-38 28FH-W-B-1602-38 28FH-W-B-1603-38 28FH-W-B-1802-38

Product Description

28FH series is spunlaced non-woven fabrics. The fabrics has outstanding performance in energy saving and sound absorption.WR and FR are customizable. It complies with Oeko-Tex 100 and GREENGUARD standard. Cold knife can be applied in processing.

28FH-W: Dim out single cell honeycomb shades fabrics.

28FH-W-B: Black out single cell honeycomb shades fabrics.

The back side of 28FH-W and 28FH-W-B are in white color, you can also choose to be the same color as the front side(-U).

Standard Width is 3000 mm, 6 type of different pleats height: 15 mm / 20 mm / 25 mm / 32 mm / 38 mm / 45 mm.

Low MOQ requirment.

Features

Specifications

Series	28FH-20	28FH-25	28FH-38	28FH-45
Series	28FH-B-20	28FH-B-25	28FH-B-38	28FH-B-45
Features	dim out	dim out	dim out	dim out
Features	black out	black out	black out	black out
Fibre Composition	100% Polyester	100% Polyester	100% Polyester	100% Polyester
Pleated Height	2.0cm	2.6cm	3.8cm	4.5cm
Width	3000mm	3000mm	3000mm	3000mm
Thickness	Abt. 0.25mm	Abt. 0.25mm	Abt. 0.25mm	Abt. 0.25mm
Weight	Abt. 160g/m²	Abt. 150g/m²	Abt. 145g/m²	Abt. 140g/m²
Torsion	0	0	0	0
Torsion	--	≤1%	≤0.5%	≤0.5%
UV-Blocking	100%	100%	100%	100%
Shading Rate	＞69%	＞69%	＞69%	＞69%
Shading Rate	100%	100%	100%	100%
Color Fastness	≥4-5 Grade	≥4-5 Grade	≥4-5 Grade	≥4-5 Grade
PVC Content	Not Detectable	Not Detectable	Not Detectable	Not Detectable
Formaldehyde Content	Not Detectable	Not Detectable	Not Detectable	Not Detectable
Extractable Metal Content	Not Detectable	Not Detectable	Not Detectable	Not Detectable
Sensitizing And Carcinogenic Content	Not Detectable	Not Detectable	Not Detectable	Not Detectable
Water Repellent Standard	*1	*1	*1	*1
Flame Retardant Standard	*2	*2	*2	*2

*1 Water repellent function customization available

*2 Flame Retardant function customization available

Production Process

Applicable System & Accessories

Day-night system	Up-Down matching system	Ball chain controlled system with auto-lowering function

It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	It combines the function of rope system and auto-lowering characteristics, perfectly unity of the day blinds and night blinds.	Just with a soft pull of the ball chain, then the blind will fall down with uniform speed by itself.
TDBUaccordion system	cordlock system	Arc-shaped motorized system

It uses a special circular rope in the system. Just with a soft push of the handle, then it can adjust the sun-light according to the needs. Besides, this system is also an expansion and interpretation to the skylights.	Color match design: Headrail, bottom rail, fabric, cord and knob are color totally matched and coordinated. High quality cord makes the blinds endurable and long life. Can be controlled at right side or left side in accordance with diversified requirement. This system is also available for day and night blinds.	Motorized system adopts high-end imported motors, with multiple advantages such as low noisy, low energy consumption and long service life. It can also provide you the best comfortable control experience, with different control method such as wall switch, remote wireless, and intelligent control method.
